SOFIA´S PROJECT: Tooling for 7-point Bending Tests designed and manufactured by ALESTIS

Updated: Jun 15, 2022

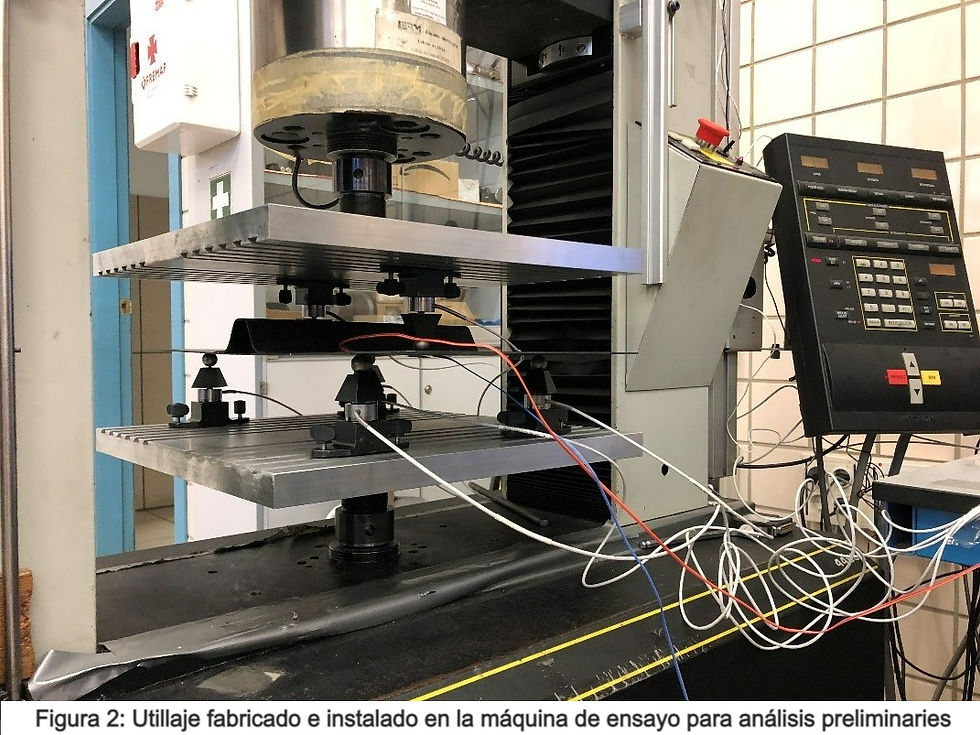

Tooling necessary to carry out 7-point Bending Test (SPBT), included within L2T, has been completely designed by ALESTIS, supported by University of Seville (US).


Analyzing Test requirements based on existing documentation, ALESTIS Design and Stress departments have worked together in the development of a very adaptable concept which provides an interesting flexibility referred to both load and supports application points and test machine attachment.

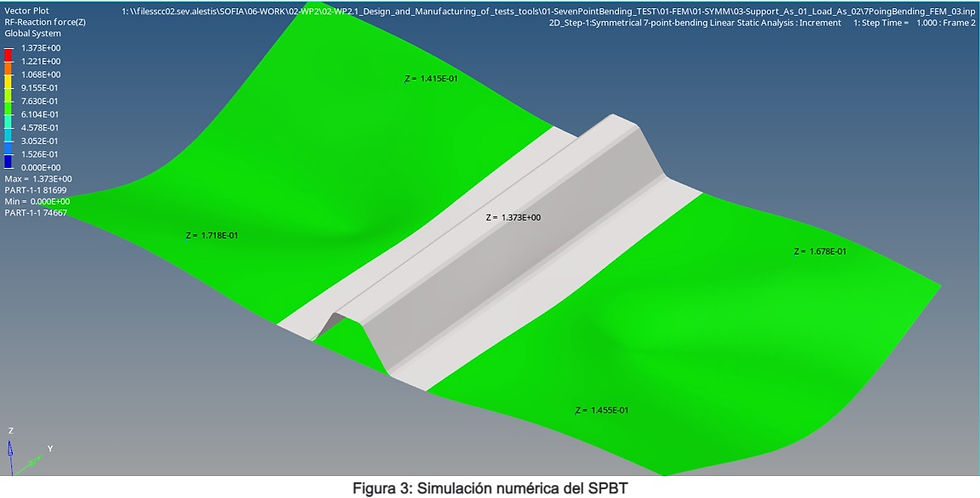

Linear Numerical simulation has been performed in order to analyze load distribution at support points based on their locations for symmetric and antisymmetric configurations.
